RBLS-F-2
DRAWING
PARAMETER


Igniter Technical Parameters


1.Input voltage: Dc1.5V (5#Battery)

2.Flameout frequency: >6HZ

3.0perating current: <200mA

4. Output voltage: Minimum output voltage 12KV

5. Operating times: >30000 times

6. Maximum working temperature: 85°c

7. Output terminal size: 0.5mm*2.8mmor 0.8mm*2.8mm

8. Body material: Nylon

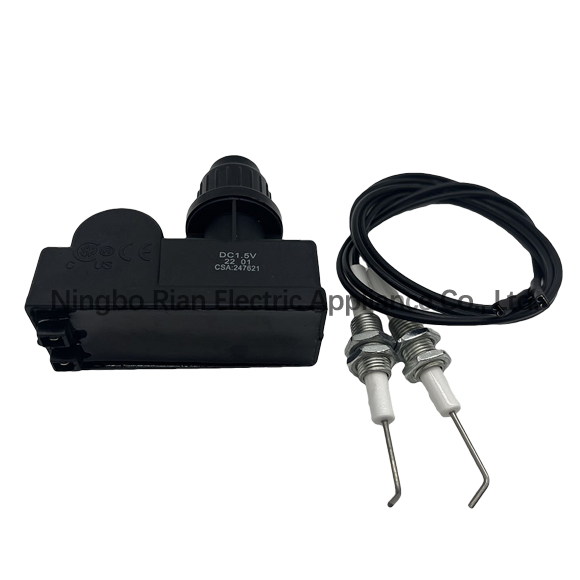

Electron igniter connect with ceramic electrode needle,

The black wire length could customize according to your requirement.
