Thermopile

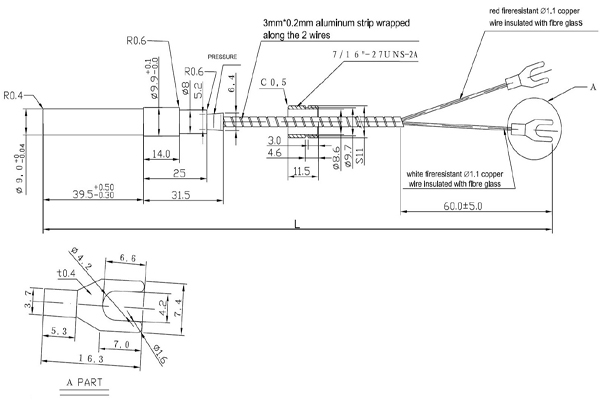

DRAWING
PARAMETER


1.Maximum Working temperature: 700℃
2.E.M.F. In open circuit(650℃) ≥750mV
3.Nature of gas applied: LPG, Town gas, Natural gas.
4.Min. bending radius: 15mm

5.Inner resistance: 3.2Ω ±10% （25℃）

Thermopile Total length(Customize)
1.RBYMA-K 24inch 610mm ±10mm
2.RBYMA-K 36inch 915mm ±15mm
3.RBYMA-K 48inch 1220mm±20mm

4.RBYMA-K 60inch 1524mm±20mm


Thermopile used for gas boiler safety protector, assemble with many kinds of ODS pilot burner.
